Radiator Massey Ferguson 3666234M91, 3366234M91, 3546937M92, 3546939M91, 3307942M96, 3307942M97, 3546937M91, 150-116, 3666234M91, 3366234M91, 3546937M92, 3546939M91, 3307942M96, 3307942M97, 3546937M91, 150-116,

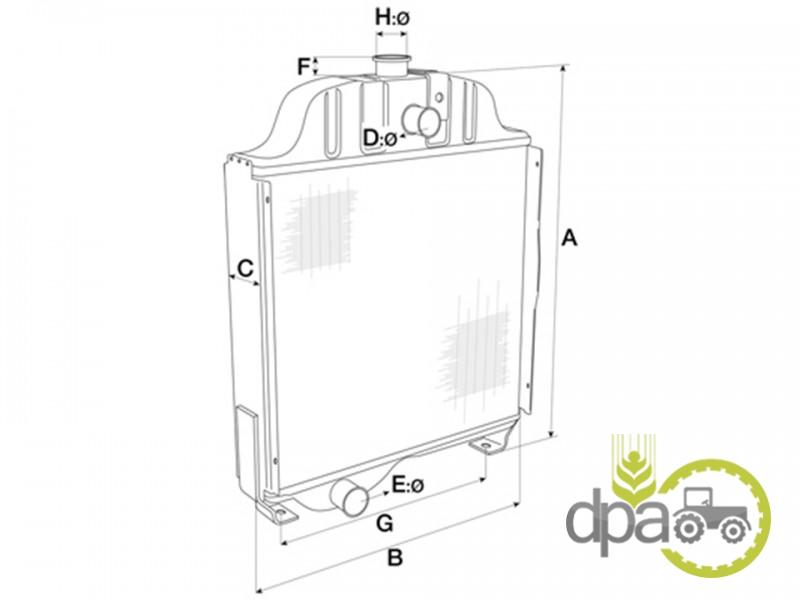

A: 620 mm
B: 475 mm
C: 105 mm
D: 44.7 mm
E: 37.6 mm
F: 40 mm
G: 265 mm
H: 41.85 mm
4 celule

Massey Ferguson

Tractor
Serie: 200
233 ((Late) (Temperate) ), 234CF ((Temperate) ), 244CF ((Temperate) ), 253 (Italy) ((Late) (Temperate) ), 253 (UK), 254CF ((Temperate) ), 263T (Italy) ((Temperate) ), 264T ((Temperate) ), 264TCF ((Temperate) ), 264TS ((Temperate) ), 273 ((Late) (Temperate) ), 274C ((Late) (Temperate) ), 274CF, 274SK ((Late) (Temperate) ), 283 ((Late) (Temperate) ), 284 ((Late) (Temperate) ), 293 ((Late) (Temperate) ), 294 ((Late) (Temperate) ), 294C, 294S ((Late) (Temperate) ),

Serie: 300
333 ((Temperate)(Curli) ), 353 ((Temperate)(Curli) ), 353LX ((Temperate)(Curli) ), 353S ((Temperate)(Curli) ), 363 ((Temperate)(Curli) ), 363LX ((Temperate)(Curli) ), 363S ((Temperate)(Curli) ), 364CF ((Temperate)(Curli) ), 373 ((Temperate)(Curli) ), 373LX ((Temperate)(Curli) ), 373S ((Temperate)(Curli) ), 376C ((Temperate)(Curli) ), 376CF ((Temperate)(Curli) ), 376XCF ((Temperate)(Curli) ), 377 (Without A/C (Curli) ), 383 ((Temperate)(Curli) ), 383LX ((Temperate)(Curli) ), 383S ((Temperate)(Curli) ), 387 (Without A/C (Curli) ), 393 ((Temperate)(Curli) ), 393LX ((Temperate)(Curli) ), 393S ((Temperate)(Curli) ), 394C ((Temperate)(Curli) ), 396C ((Temperate)(Curli) ), 396CF ((Temperate)(Curli) ), 397 (Without A/C (Curli) ),

A4.248
AD3.152
AT3.152.4
A4.236
