Date tehnice:

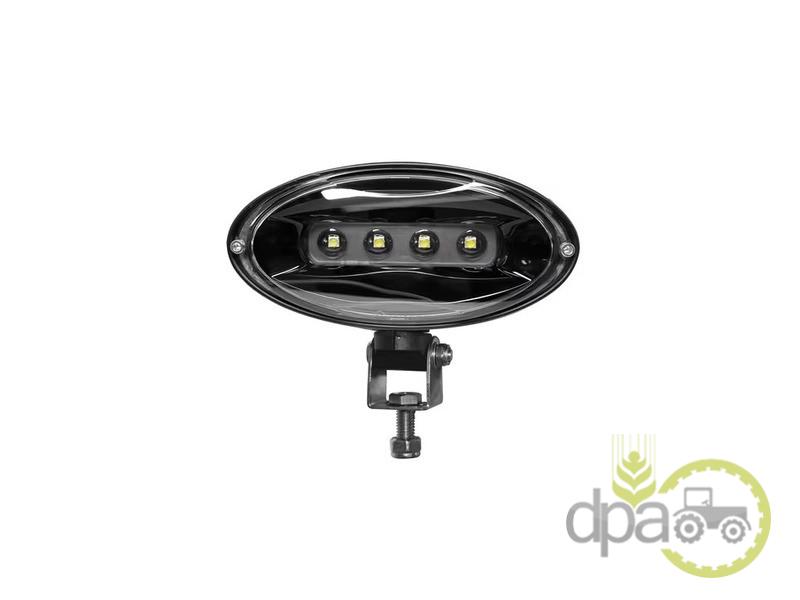

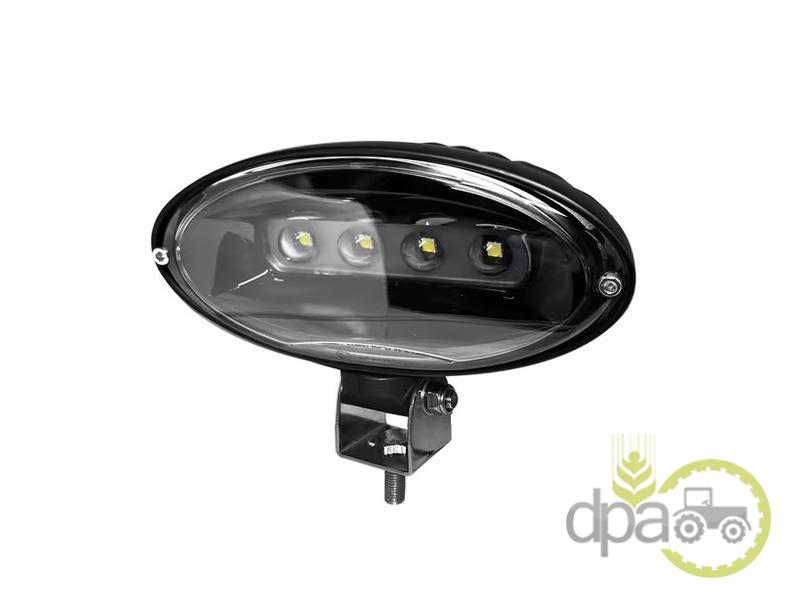

Specificatii lampa de lucru LED (8000 lm)
Tehnologie: LED (4 LED-uri)
Flux luminos: 8000 lm
Putere: 80 W
Temperatura culoare: 6000 °K (Alb)

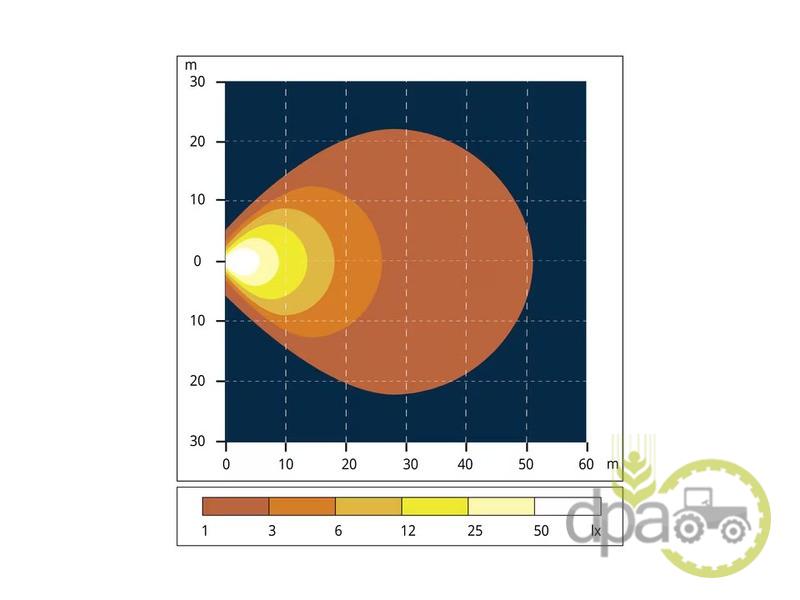

Tip lumina: Flood (Inundatie/Apropiere)
Tensiune: 12 V / 24 V (Interval 10-30 V)
Constructie si Rezistenta
Clasa de izolare: IP69K (Protectie maxima la apa si presiune)
Material carcasa: Aluminiu (Culoare Negru)
Standard: CISPR 25 Class 3 (Protectie interferente radio)
Temperatura de lucru: -40 °C pana la +80 °C
Dimensiuni si Montaj
Forma: Ovala

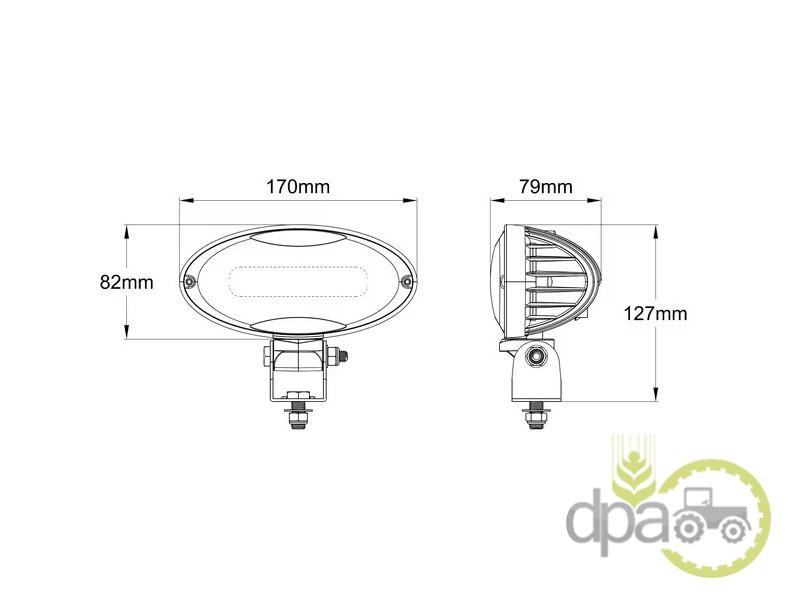

Dimensiuni: 170 x 127 x 79 mm (L x I x Adancime)
Tip mufa: 9006
Montare: Surub (M10)
Pozitie montare: Universal (Fata, Spate, Lateral, Superior, Inferior)
Se potriveste la:
John Deere
Seria 5000 (E / EN / EL / EH / M / MH / R)
5050E, 5055E, 5058E, 5065E, 5075E, 5075EN, 5075M, 5083E, 5085E, 5085M, 5090E, 5090EH, 5090EL, 5090M, 5090R, 5093E, 5095M, 5100E, 5100M, 5100MH, 5100R, 5101E, 5105M, 5105MH, 5115M, 5115R, 5115RH, 5120M, 5125R, 5130M,
Seria 6000 (M / MC / RC / E / EH / R / RH)
6090M, 6095MC, 6100E, 6100M, 6105EH, 6105MC, 6105R, 6105RC, 6110E, 6110M, 6110R, 6115E, 6115MC, 6115R, 6115RC, 6120EH, 6120M, 6120R, 6125E, 6125M, 6125R, 6130E, 6130M, 6130R, 6135R, 6140M, 6140R, 6145M, 6145R, 6150R, 6150RH, 6155M, 6155MH, 6155R, 6155RH, 6170R, 6175M, 6175R, 6190R, 6195M, 6195R, 6210M, 6210R, 6215R, 6230R, 6250R, 6403,
Seria 6R (Generația Nouă)
6R 110, 6R 120, 6R 130, 6R 140, 6R 145, 6R 155, 6R 165, 6R 175, 6R 195, 6R 215, 6R 230, 6R 250,
Seria 7000 (R)
7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R,
Seria 8000 (R / RT)
8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT, 8400R,
Seria 9000 (R / RT / RX)
9360R, 9370R, 9410R, 9420R, 9420RX, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9560RT, 9570R, 9570RT, 9570RX, 9620R, 9620RX,
